Project EV Charging Pedestal
Project EV charging pedestal

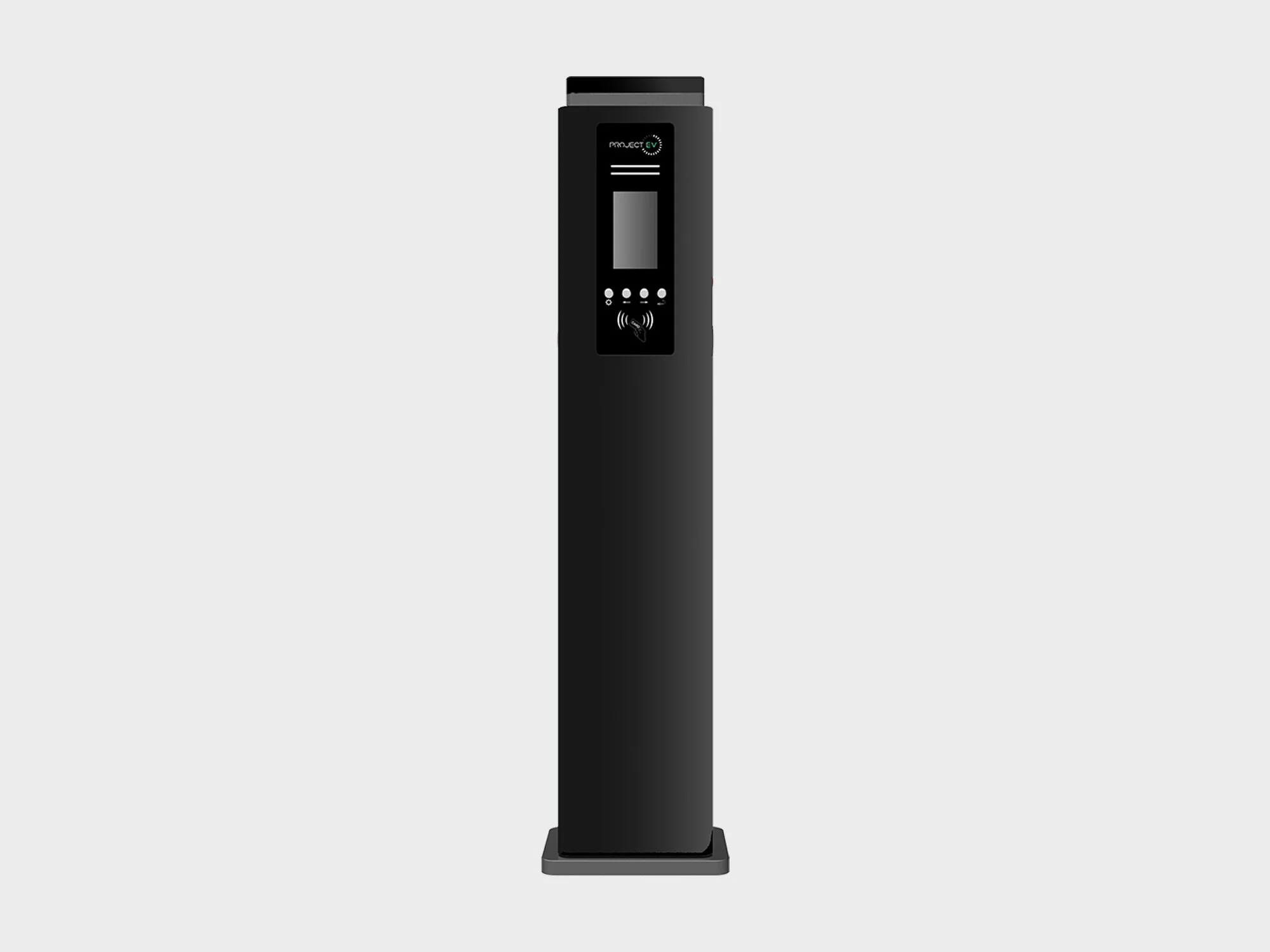

The EVA-22D-SE-RFID is a three-phase dual AC charging unit, packed with features, such as a no earth spike required installation. The dual gun charger is perfect for both domestic and commercial use with a market-leading five-year warranty. This charger also has time shifting capabilities giving you the opportunity to save £100’s per year*, a cable lock system for added security, free mobile monitoring app, and a dynamic load balancing system.
The EVA-22D-SE-RFID is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase.
-
Dual Socketed EV Charger Ideal for Domestic and Small Scale Commerical Use
2x Type 2 Sockets
Untethered
Three Phase
Comes with 1 RFID Card
Control Via RFID, Plug-and Charge or Project EV App
App Allows Customising of Charging Schedules, Prioritising of Off-Peak Charging and Charging Record Access
LED Status Indicator
Built-In Earth Spike
On-Board RCBO
Dynamic Load Balancing
Cable Lock System
IP65 Rated
Input Amps: 63A
Input Voltage: 415V
Max Power Output: 22kW Per Socket
Emergency Stop Button
Over/Under Voltage Protection
Overload Protection
Short Circuit Protection
Earth Leakage Protection
Over-Temp Protection
Surge Protection
PEN Fault Protection
Dimensions (hxwxd): 1635mm x 320mm x 175mm
Weight: 30kg
5 Year Warranty
